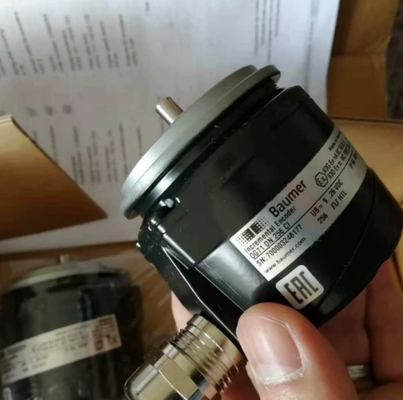

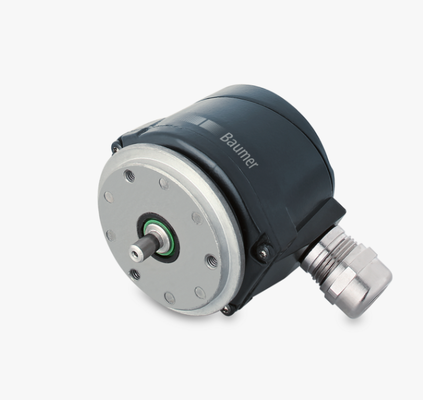

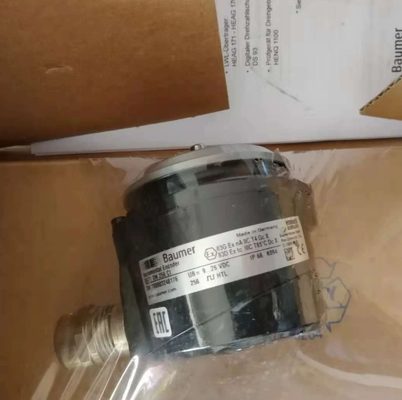

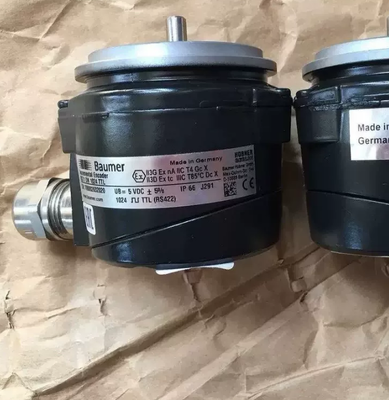

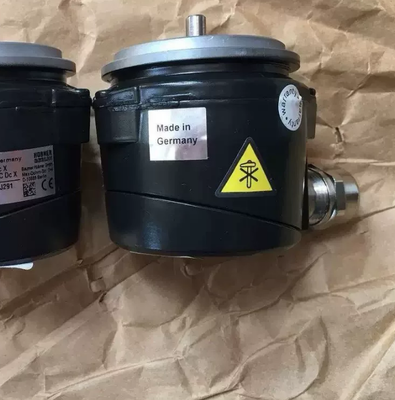

New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
| 원래 장소 | 독일 |
|---|---|
| 브랜드 이름 | BAUMER |
| 모델 번호 | 바우머 OG71 |
| 최소 주문 수량 | 2 |
| 가격 | USD＄550 |
| 포장 세부 사항 | 원래 포장 |
| 배달 시간 | 재고 있음 |
| 지불 조건 | L/C, D/A, D/P, T/T, 서부 동맹 |
| 공급 능력 | 10개 |
제품 상세 정보
| 강조하다 | Baumer OG71 rotary encoder,incremental encoder with warranty,Baumer Hübner rotary encoder |
||
|---|---|---|---|
제품 설명
Technical data - electrical ratings
- Voltage supply
-
- 9...26 VDC
- 5 VDC ±5 %
- Consumption w/o load
-
- ≤100 mA
- Pulses per revolution
-
- 100 … 1024
- Phase shift
-
- 90 ° ±20°
- Duty cycle
-
- 40…60 %
- Reference signal
-
- Zero pulse, width 90°
- Sensing method
-
- Optical
- Output frequency
-
- ≤120 kHz
- Output signals
-
- A, B, C + inverted
- Output stages
-
- HTL
- TTL/RS422
- Interference immunity
-
- EN 61000-6-2
- Emitted interference
-
- EN 61000-6-3
- Approval
-
- CE
- UL approval / E217823
Technical data - mechanical design
- Size (flange)
-
- ø58 mm
- Shaft type
-
- ø6 mm solid shaft
- Admitted shaft load
-
- ≤30 N axial
- ≤40 N radial
- Flange
-
- Synchro flange
- Protection EN 60529
-
- IP 66
- Operating speed
-
- ≤10000 rpm (mechanical)
- Operating torque typ.
-
- 1 Ncm
- Rotor moment of inertia
-
- 25 gcm²
- Material
-
- Housing: aluminium die-cast
- Shaft: stainless steel
- Operating temperature
-
- -20...+85 °C
- Resistance
-
- IEC 60068-2-6
- Vibration 10 g, 10-2000 Hz
- IEC 60068-2-27
- Shock 300 g, 6 ms
- Explosion protection
-
- II 3 G Ex ec IIC T4 Gc X (gas)
- II 3 D Ex tc IIIC T85°C Dc X (dust)
- (only with option ATEX)
- Connection
-
- Connecting terminal
- Weight approx.
-
- 300 g
