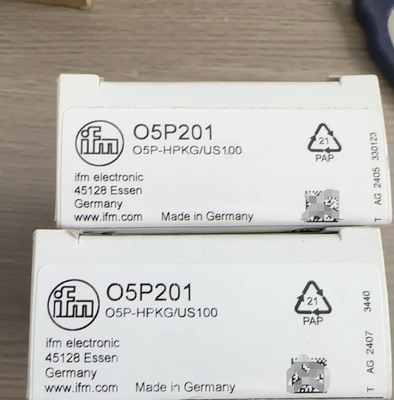

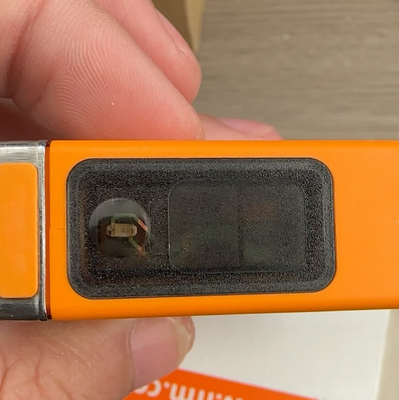

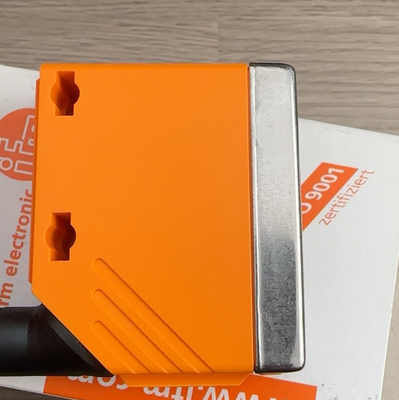

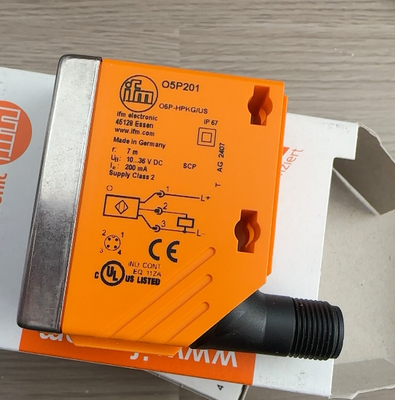

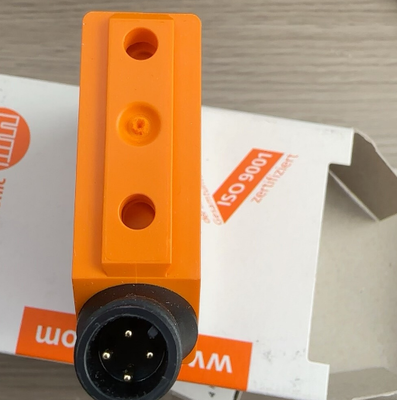

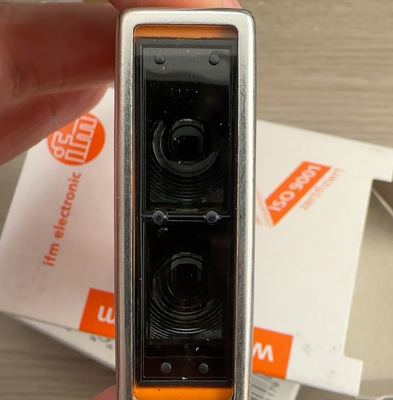

New original German IFM O5P201 photoelectric switch, induction switch, with short delivery period
| 원래 장소 | 독일 |
|---|---|
| 브랜드 이름 | IFM |
| 모델 번호 | O5P201 |
| 최소 주문 수량 | 2 |
| 가격 | USD＄143 |
| 포장 세부 사항 | 원래 포장 |
| 배달 시간 | 재고 있음 |
| 지불 조건 | L/C, D/A, D/P, T/T, 서부 동맹 |
| 공급 능력 | 20PC |
제품 상세 정보
제품 설명
Product characteristics
| Type of light | red light |
| Housing | rectangular |
Application
| Special feature | polarization filter |
| Function principle | Retro-reflective sensor |
| Application | Industrial applications |
Electrical data
| Operating voltage[V] | 10...36 DC |
| Current consumption[mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 624 |
Outputs
| Electrical design | PNP |
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range referred to prismatic reflector[m] | 0.1...7; (Prismatic reflector Ø 80 E20005) |
| Range adjustable | no |
| Max. light spot diameter[mm] | 175 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
Operating conditions
| Ambient temperature[°C] | -25...60 |
| Protection | IP 67 |
