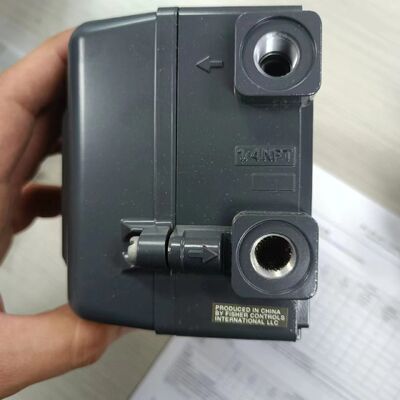

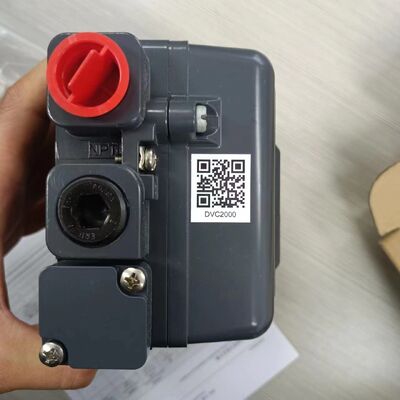

FISHER DVC2000 ELECTRO-PNEUMATIC Valve Positioner FUNCTION: ROTARY; SIGNAL INPUT: 4...20 MA; PRESSURE: 0.5...7 BAR
| 원래 장소 | 미국 |
|---|---|
| 브랜드 이름 | Emerson Fisher |
| 인증 | CE |
| 모델 번호 | 밸브 포지셔너 DVC2000 |
| Minimum Order Quantity | 1 |
| 가격 | $1268/PC |
| Packaging Details | Original Carton packaging |
| 배달 시간 | 9-11 근무일 |
| 지불 조건 | 100% TT, L/C, 서부 동맹 |
| Supply Ability | 100PCS / Month |
제품 상세 정보
| 장착 브래킷 | 브라켓을 탑재하는 표준 각도 타격 | 최소 제어 전류 | 4-20mA 피드백 |
|---|---|---|---|
| 제품 유형 | 밸브 포지셔너 DVC2000 | 인클로저 재료 | 알루미늄 다이캐스팅 또는 316SS. |
| 제품명 | 디지털 밸브 컨트롤러 | 단일 패키지 크기 | 40X40X40 센티미터 |
| 보호 등급 | IP 67 / NEMA 4X | 배송 중량 | 6kg |
제품 설명
Product Description:
The performance and simplicity of the Fisher FIELDVUE DVC2000 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability.
Features:
- Product Name: DVC2000 Digital Valve Controller
- Enclosure Material: Aluminum Diecasting or 316SS
- Minimum Control Current: 4-20mA Feedback
- Protection Class: IP 67 / NEMA 4X
- Mounting Bracket: Standard Angular Stroke Mounting Bracket
- Single Package Size: 40X40X40 Cm
- Model Numbers: DVC2000
Technical Parameters:
| Product Name | Digital Valve Controllers |
| Product Type | Valve Positioner DVC2000 |
| Operating Temperature | -25°C To +60°C |
| Mounting Bracket | Standard Angular Stroke Mounting Bracket |
| Minimum Control Current | 4-20mA Feedback |
| Single Package Size | 40X40X40 Cm |
| Shipping Weight | 6 Kg |
| Protection Class | IP 67 / NEMA 4X |
| Enclosure Material | Aluminum Diecasting Or 316SS |
Applications:
The linkage-less feedback system is easy to install. At its very basic functionality, the DVC2000 digital valve controller has a local user interface that will allow you to configure, calibrate, and tune the instrument
Years of control experience has brought this product line to a high level of reliability and dependability.
The two-stage positioner design provides a mechanical platform that enables responsiveness to small input changes and tighter process control.
Tests can be performed to identify problems with the entire control valve assembly using ValveLink™ software, which assists in pinpointing problems without disrupting the process and before the equipment fails.
Available with an I/O Options Package which includes two integral limit switches and a stem position transmitter.
Features a compact size with multilingual liquid crystal display.
Integral mounting is available on Fisher GX, and 657 and 667 size i actuators.
Packing and Shipping:

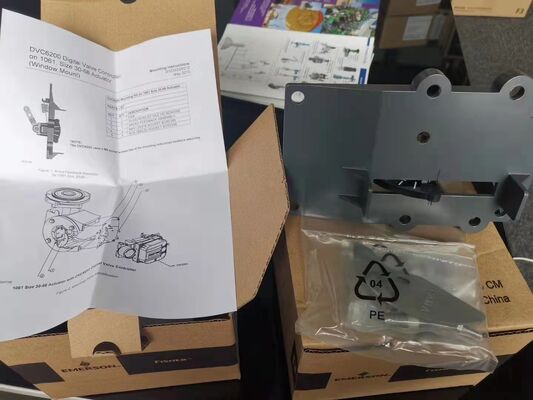

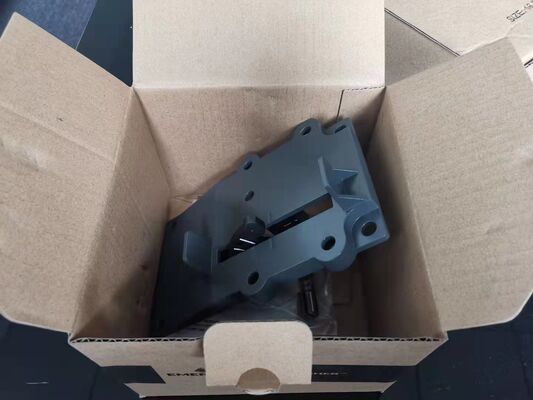

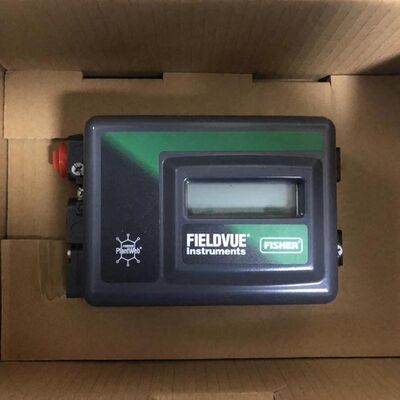

Product Packaging and Shipping for Pneumatic Valve Positioner
Each Pneumatic Valve Positioner is carefully packaged to ensure safe delivery and protection against damage during transit. The product is first wrapped in anti-static bubble wrap to prevent any electrostatic discharge and physical impact. It is then placed inside a sturdy, custom-fitted cardboard box with foam inserts for additional cushioning.
The packaging box is clearly labeled with the product name, model number, handling instructions, and any necessary hazard warnings. For bulk orders, multiple units are securely packed in larger cartons with separators to avoid contact between units.
Shipping is conducted through reliable courier services that offer tracking and insurance options. Depending on the destination, products can be shipped via air or sea freight. All shipments comply with international shipping regulations to guarantee timely and safe delivery.
Customers are advised to inspect the package upon arrival and report any damage immediately to the shipping carrier and supplier to facilitate prompt resolution.
