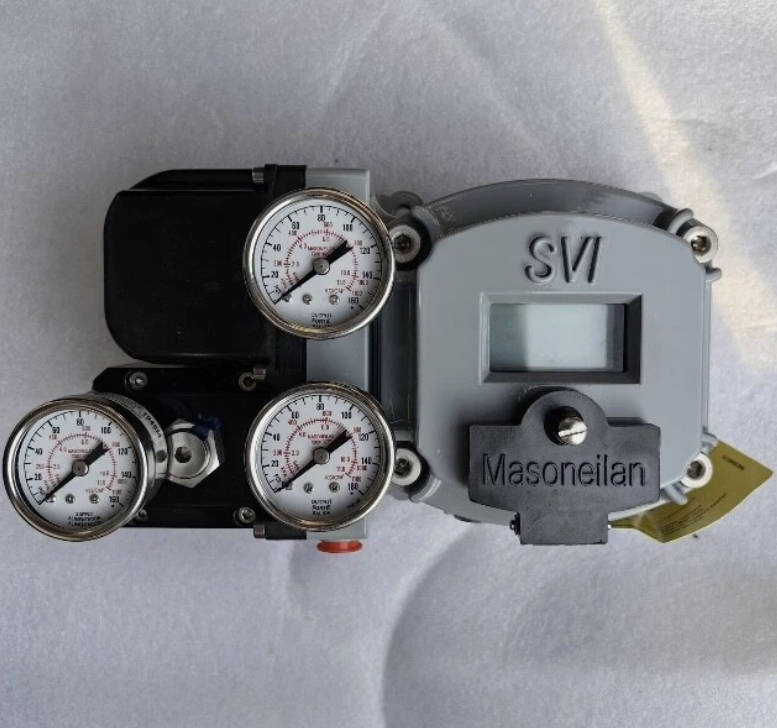

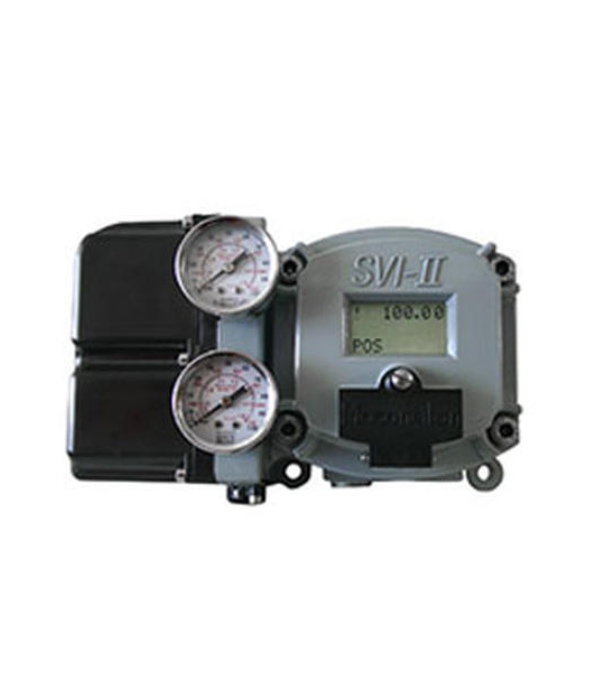

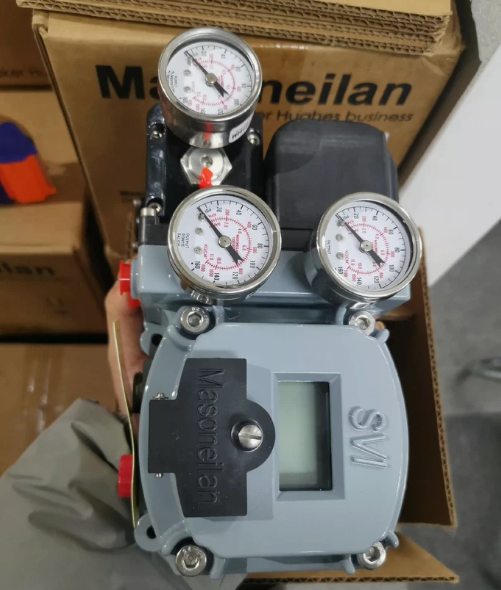

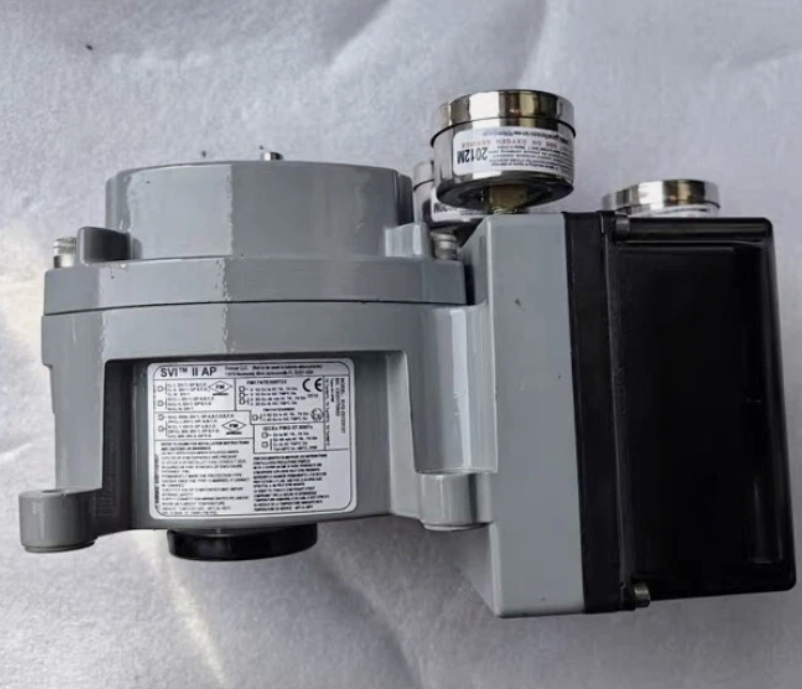

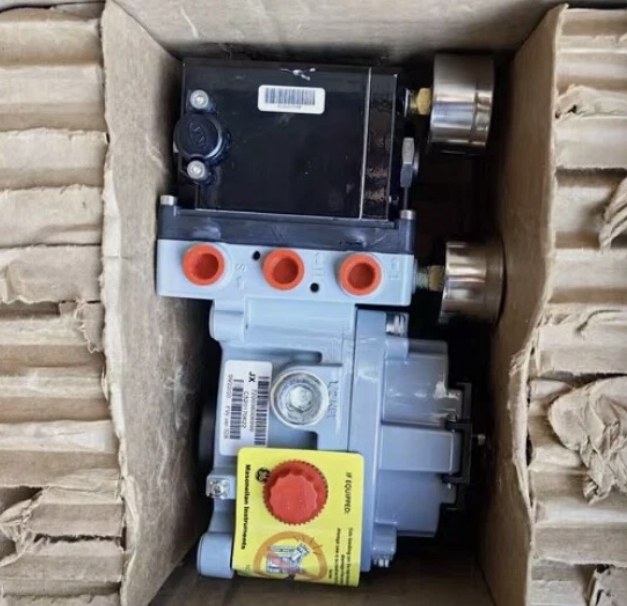

Masoneilan SVI2-31123111 SVI II AP Advanced Performance Digital Valve Positioner (HART)
| 원래 장소 | 독일 |
|---|---|
| 브랜드 이름 | Masoneilan |
| 인증 | / |
| 모델 번호 | SVI2-31123111 |
| 최소 주문 수량 | 1개 |
| 가격 | USD 1980/PC |
| 포장 세부 사항 | 원래 포장 |
| 배달 시간 | 영업일 기준 5일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 1000pc/월 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 신호 - 통신 | 4~20mA 이상의 HART 5 또는 7 | 건축 자재 | 구리가 함유되지 않은 알루미늄 하우징 |
|---|---|---|---|
| 작동 온도 | -50°C ~ +85°C | 무게 | 1개 |
제품 설명
-
The SVI™ II AP (Smart Valve Interface, Advanced Performance) is a 32 bit microprocessor digital valve positioner with a local interface that controls a pneumatic actuator using a two-wire 4-20mA control signal. The instrument offers bi-directional communication using the HART® protocol. Its universal design offers ease of retrofit in place of existing analog positioners on Masoneilan or non-Masoneilan pneumatic actuators, either single-acting or double-acting.
Features / Benefits :
Non-Contact Position Sensing Technology:
- Sensing through the housing, no mechanical moving parts entering the main housing cavity, prolonging the life
- Simple mounting procedure
Easy, Simple, Accurate:
- LCD and pushbuttons operable in all certified hazardous environments
- Quick and accurate commissioning with auto stops and auto tune methods
- One design fits many applications
- Rotary or Linear
- Remote or Local
Specifications
Signal - Communication
- HART 5 or 7 over 4-20mA
Diagnostics
- Standard Diagnostics
- Advanced Diagnostics
Construction / Materials
- Copper-free Aluminum Housing
Operating Temperature
- -50°C to +85°C
Pneumatics Action
- Single or Double Acting, fail safe
- Rotary and linear
Supply Pressure
• Single-Acting: 20 to 100 psi max (1.4 to 6.9 bar)
• Double-Acting: 20 to 150 psi max (1.4 to 10.3 bar)
Air Delivery
- 280 SLPM @ 30psi
Certification
- ATEX, IECEx, US, Canada approvals for
- Flameproof/Explosion-proof
- Intrinsic Safety
- Dust Ignition proof
- Non-Incendive
