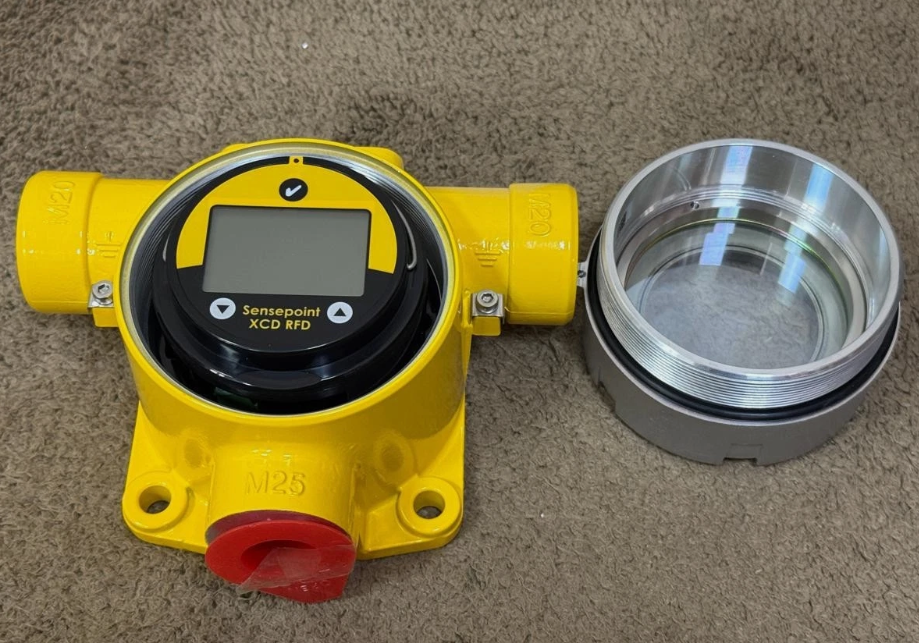

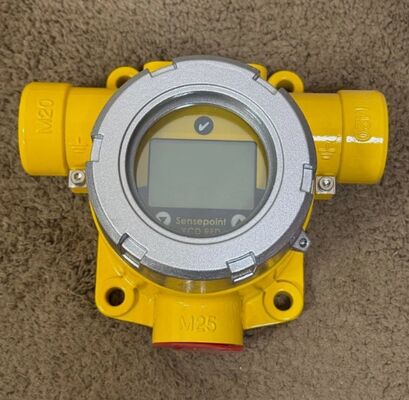

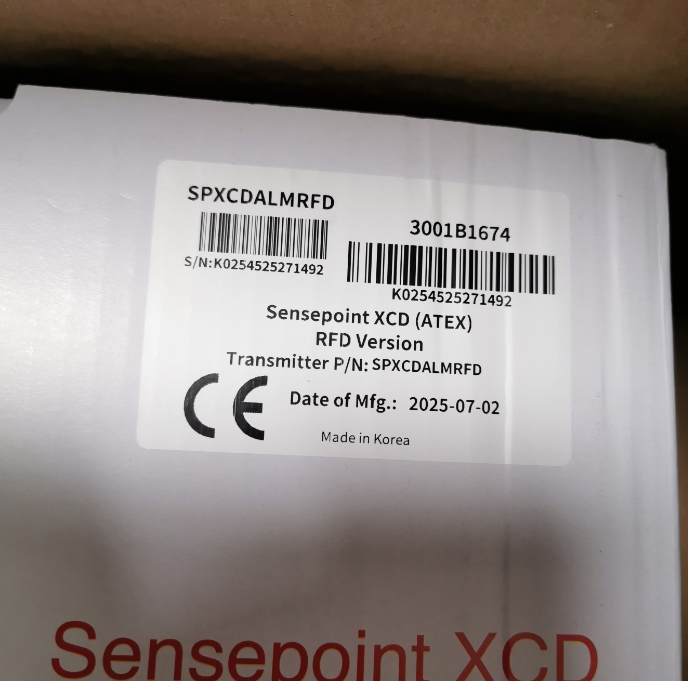

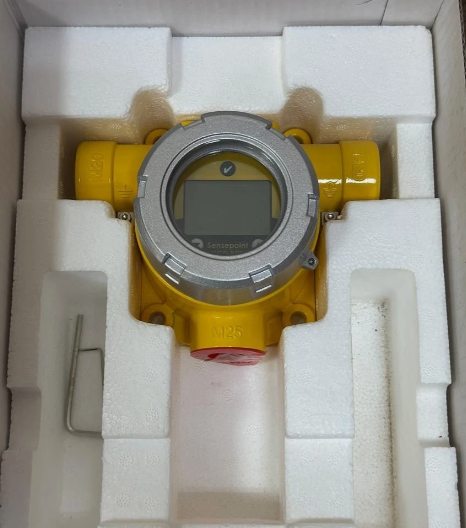

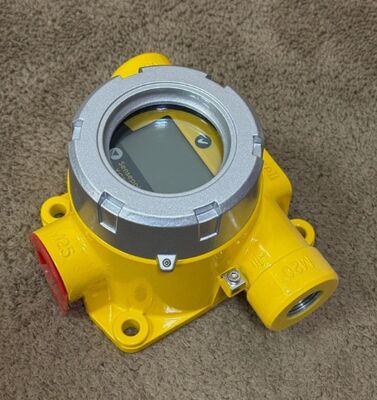

Honeywell SPXCDALMRFD FIXED Gas Deteors Sensepoint XCD RFD Gas Detector
| 원래 장소 | 대한민국 |
|---|---|
| 브랜드 이름 | Honeywell |
| 인증 | / |
| 모델 번호 | XCD |
| 최소 주문 수량 | 1개 |
| 가격 | USD $800/PC |
| 포장 세부 사항 | 원래 포장 |
| 배달 시간 | 근무일 1-3 일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 1000pc/월 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 상표 | 허니웰 | 하위 범주 | 가스 감지 센서 및 송신기 |
|---|---|---|---|
| 중량 범위 | 316 스테인레스 스틸: 11파운드 | 최대 압력 | 110 Kpa |
제품 설명
Product Overview:
Sensepoint XCD RFD (Remote Flammable Detector) has been specifically designed for use with remotely mounted flammable gas sensors. This configuration is ideal for applications where the sensor is required to be mounted remotely from the transmitter in areas where temperatures are well above ambient (up to 150°C/302°F), or that are difficult to access. The transmitter can be mounted at a suitable location away from this area where it is easy to access, view its display and interact with via the user interface.
Features & Benefits:
- Accurate detection with fast response
- Mount sensor up to 100 ft. from transmitter
- Easy to read tri-color backlit display
Quick Specs:
- Input voltage range: 16 to 32 VDC (24 VDC nominal)
- Communication: RS485, MODBUS RTU
- Mounting: Pole or wall
Fire and Gas Consultancy Services
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
FEATURES
- Sub-Category
- Gas Detection Sensors & Transmitters
- Gas Detection Sensors & Transmitters
- Features & Benefits
- Auto-Inhibit During Maintenance Prevents False Alarms
- Compatible with Honeywell Analytics’ Proven Catalytic Bead Flammable Gas Sensors
- Easy to Read Tri-Colour Backlit Display with Digits, Bar Graph and Icons
- Fully Configurable via Non-Intrusive Magnetic Switches
- Gas Sensors Use Long Life, Poison Resistant Beads as Standard, Reducing Ongoing Cost of Ownership
- High Temperature Gas Sensors Have Thermally Matched Beads for Highest Accuracy and Stability Enabling Low Alarm Levels
- Non-Intrusive, One-Man Operation Reduces Cost of Maintenance
- Optional Sensepoint XCD plug-in sensor reduces maintenance time further
- Reduced Spares and Stock Costs
- Reduces Training Costs
- Selectable Sink or Source 4 to 20 mA Output
- Sensepoint XCD Common Transmitter Platform
DIMENSIONS & WEIGHT
- Weight range
- 316 Stainless Steel: 11 lbs
- Aluminium Alloy LM25: 4.4 lbs
TECHNICAL SPECIFICATIONS
- Humidity Range
- Continuous: 20 to 90% RH (Non-Condensing)
- Intermittent: 10 to 99% RH (Non-Condensing)
- Relay Output Configuration
- 3 x 5A @250 VAC
- Maximum Pressure
- 110 kPa
- Mounting
- Wall
- Conduit Entries
- (2) 3/4 in NPT
- Communication
- Modbus RTU
- RS485
OPERATING CHARACTERISTICS
- Minimum Temperature
- -40˚C
- Storage Temperature
- -25 to +65°C
