Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
| 원래 장소 | 독일 |
|---|---|
| 브랜드 이름 | HUBA |
| 인증 | / |
| 모델 번호 | 511.941003742 |
| 최소 주문 수량 | 1PC |
| 가격 | USD 70/PC |
| 포장 세부 사항 | 원래 포장 |
| 배달 시간 | 근무일 5 일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 1000pc/월 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | 압력 트랜스미터 511 | 압력 측정 범위 | -1 ... 600바 |
|---|---|---|---|
| 응답 시간 | <2ms(일반적으로 1ms) | 부하변화 | <100Hz |
| 메디아 | 공정 매체; 가스 | MOQ | 1PC |
| 강조하다 | Huba Control 511 pressure transmitter,Precision pressure sensor 4-20mA,100bar pressure transmitter with warranty |
||
제품 설명

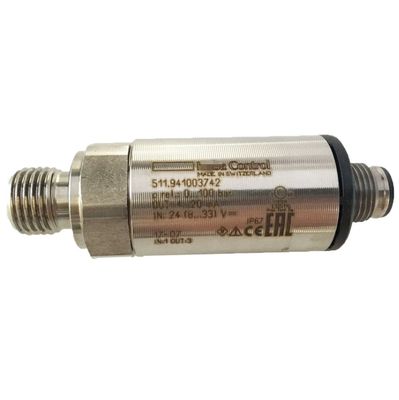

Pressure transmitter 511
The compact pressure transmitters of Type 511 meet the highest demands in terms of robustness, accuracy, temperature stability, and EMC properties. They are therefore suitable for use in a wide range of industrial applications.
-
Compact and robust design for maximum operational safety
-
No media leakage when exceeding burst pressure
-
Minimal temperature influences on accuracy
-
Excellent EMC properties
-
Time-saving, fast customer-side cable assembly with quick cable screw connection
Ambient condition
Ambient temperature
<125 °C
Material
Housing
Stainless steel 1.4305 (AISI 303)
Measuring element with media contact
Ceramic Al2O3 (96 %)

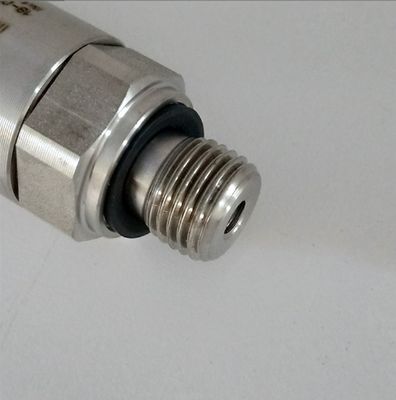

Pressure connection with media contact
Stainless steel 1.4305 (AISI 303)
Media stop system with media contact
PPS
Sealing material with media contact
FPM; EPDM; NBR; FPM spez.
Electrical data
Current consumption
<20 mA
Inverse-polarity protection
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage.
Insulation voltage
500; 1000 VDC
Electrical connection

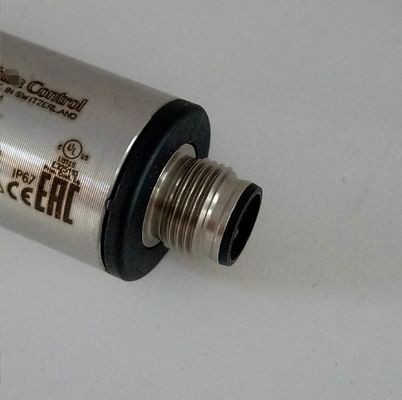

Cable 1.5 m; Cable quick connector; AMP connector (Junior Power Timer); M12x1 connector plastic thread; M12x1 connector metal thread; Connector DIN EN 175301-803-C (industry standard 9.4 mm)
Installation guide
Installation orientation
any
Approval
EMC compatibility
CE-compliant in accordance with EN 61326-2-3
UL
according to standard 61010-1
Shock according to IEC 60068-2-27
100 g, 11 ms half sine wave, all 6 directions. Free fall from 2 m onto concrete (6x).
Permanent shock according to IEC 60068-2-29
40 g over 6 ms, 1000x all 3 directions.
Vibration according to IEC 60068-2-6
20 g, 2 ... 2000 Hz with amplitude ± 15 mm, 1 octave / minute in all 3 directions, 50 continuous loads.
