FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel

원래 장소 중국
브랜드 이름 flil
인증 /
모델 번호 TG165-X
최소 주문 수량 1pc
가격 USD 280/PC
포장 세부 사항 오리지널 포장
배달 시간 근무일 5 일
지불 조건 t/t
공급 능력 1000pc/월

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
IR 해상도 80×60픽셀 열감도_NETD <70mK
시야 [FOV] 71°×56° 검출기 피치 17μm
디스플레이 해상도 320×240픽셀 모크 1pc
메시지를 남겨주세요
제품 설명

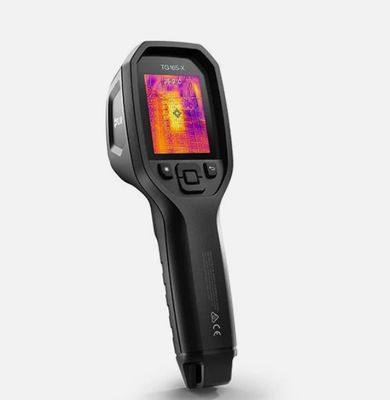

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.





Camera software update Using USB cable or SD card
Color palettes Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Detector Pitch 17 µm
Digital image enhancement No
Display resolution 320 × 240 pixels
Field of view [FOV] 71° × 56°, adapts to the IR lens
Focal Plane Array [FPA]_Spectral range Uncooled microbolometer/7.5–14 µm
Focus Fixed
Gallery Yes
Image Frequency 8.7 Hz
Image Modes MSX® (Multi Spectral Dynamic Imaging), visual
IR Resolution 80 × 60 pixels
Laser Class 1
Minimum Focus Distance 0.3 m (0.98 ft)
Minimum Measurement Distance 0.26 m (0.85 ft.)
Resolution 2 MP (1600 × 1200 pixels)
Thermal Sensitivity_NETD <70 mK
