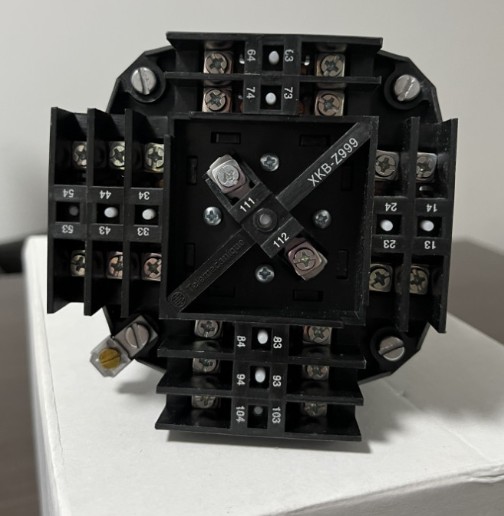

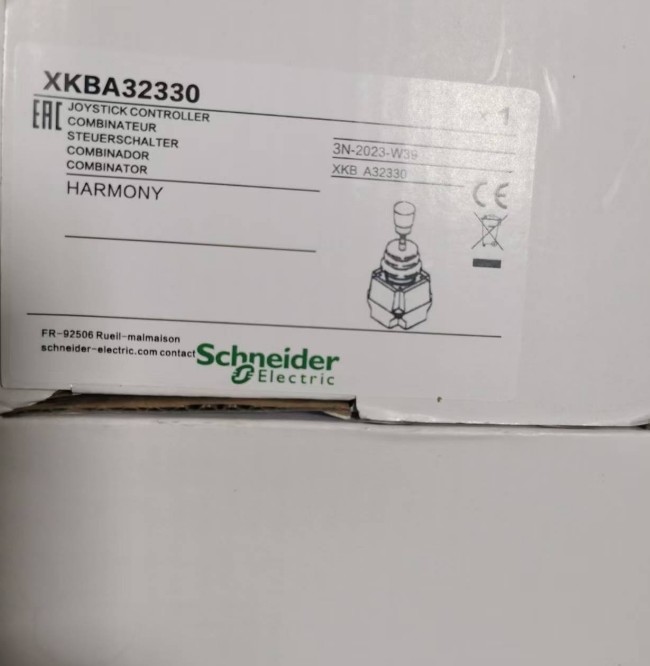

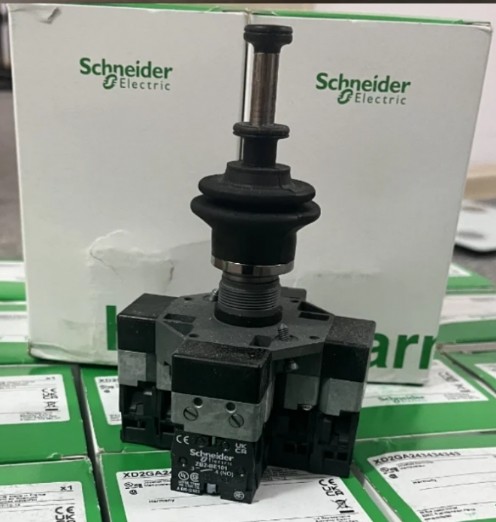

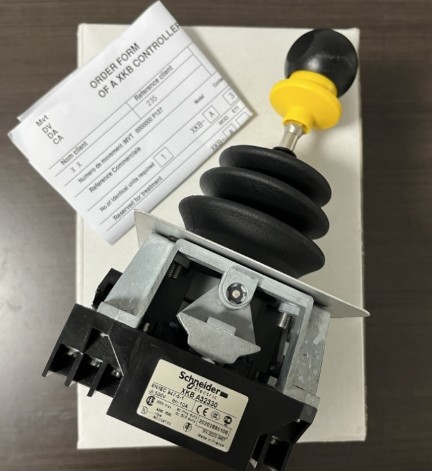

Schneider XKBA32330 Complete joystick controller, Harmony XK, XKBA light hosting application
| Place of Origin | CHINA |
|---|---|
| 브랜드 이름 | Schneider |
| 인증 | CE |
| Model Number | XKBA32330 |
| Minimum Order Quantity | 1 |
| 가격 | USD$340/PC |
| Packaging Details | ORIGINAL |
| Delivery Time | IN STOCK |
| Payment Terms | L/C,D/P,D/A,T/T,Western Union,MoneyGram |
| Supply Ability | 500PCS |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Bezel material | Metal | Ambient air temperature for operation | -20…70 °C |
|---|---|---|---|
| Overvoltage category | Class I conforming to IEC 61140 | IP degree of protection | IP54 conforming to IEC 60529 |
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
| Device short name | XKB |
|---|---|
| Bezel material | Metal |
| Fixing collar material | Metal |
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…70 °C |
| Overvoltage category | Class I conforming to IEC 61140 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Standards | EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508 |
| Product certifications | UL CSA RRS CCC |
| Contact code designation | Q300 A300 |
| Operator position information | All positions |
| Operator profile | Standard handle |
| Notch per direction | 1…3 notches at 12°-20°-28° for each direction |
| Mechanical durability | 1000000 cycles |
| Vibration resistance | 6 gn (f= 1…70 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 20 gn (duration = 11 ms) conforming to IEC 60068-2-6 |
| Connections - terminals | Captive screw clamp terminals, <= 2 x 1.5 mm² with cable end Captive screw clamp terminals, <= 1 x 2.5 mm² without cable end Captive screw clamp terminals, >= 1 x 0.5 mm² |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 10 A conforming to CSA C22.2 No 14 10 A conforming to UL 508 |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| Compatibility code | XKB |
