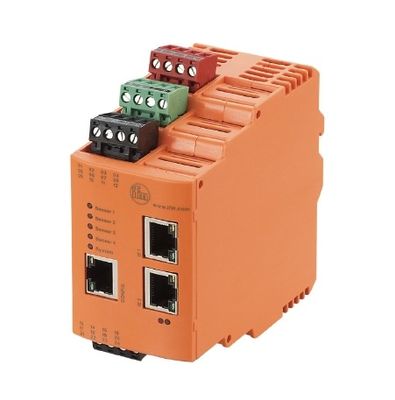

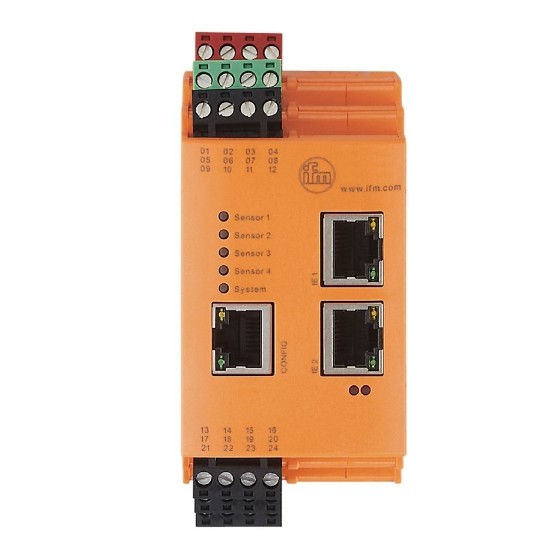

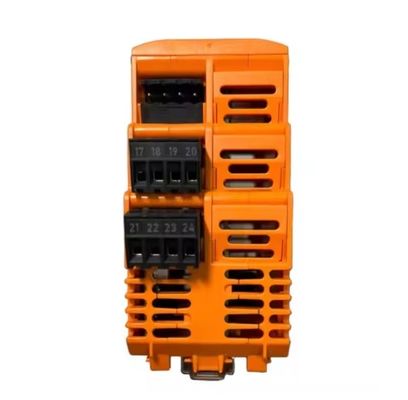

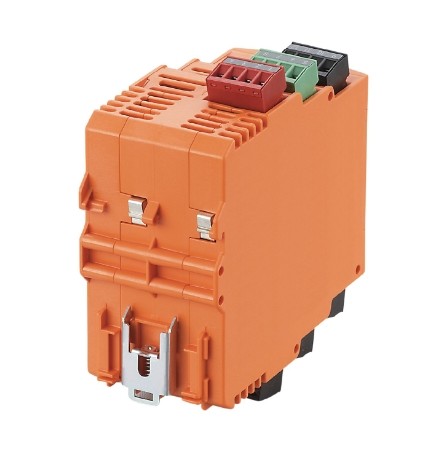

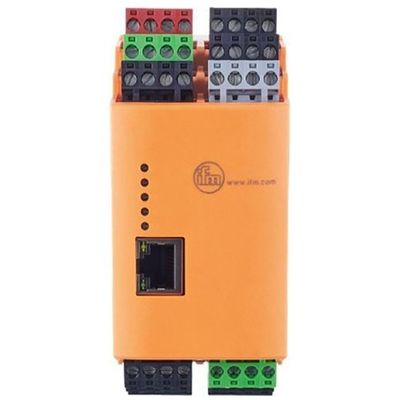

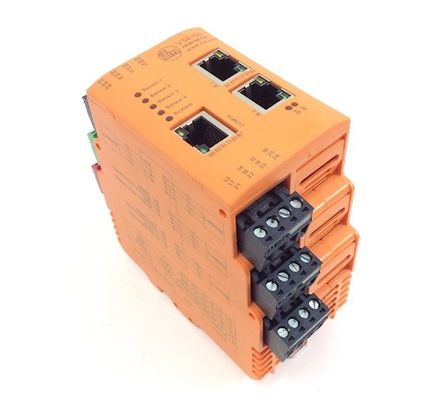

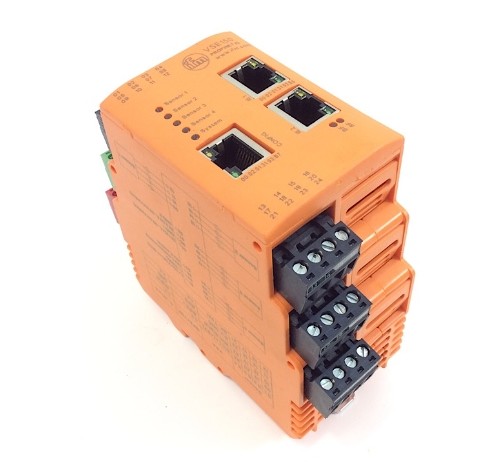

IFM VSE150 Vibration analysis module vibration sensor
| Place of Origin | Germany |
|---|---|
| 브랜드 이름 | ifm |
| 인증 | CCC,CE |
| Model Number | VSE150 |
| Minimum Order Quantity | 1 |
| 가격 | USD$1040/pc |
| Packaging Details | original |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 1000pcs per month |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Frequency range [Hz] | 0.1...12000 | Ambient temperature [°C] | 0...60 |
|---|---|---|---|
| Weight [g] | 415.2 | Current loss [mA] | 200 |
| Working voltage [V] | 24 DC |
제품 설명
Product characteristics
| Frequency range [Hz] | 0.1...12000 |
|---|---|
| Communication interface | Ethernet |
Application
| Design | parameter setting via PC software VES004 |
|---|---|
| Application | continuous vibration monitoring |
Electrical data
| Operating voltage tolerance [%] | 20 |
|---|---|
| Operating voltage [V] | 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption [mA] | 200; ((24 V DC)) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 8; (configurable) |
|---|---|
| Number of inputs and outputs | Number of analog inputs: 2; Number of dynamic inputs: 4; Number of digital outputs: 2; Number of analog outputs: 1 |
Inputs
| Total number of inputs | 6 |
|---|---|
| Number of analog inputs | 2 |
| Analog input (current) [mA] | 4...20 |
| Resolution of analog input | 12 |
| Number of dynamic inputs | 4 |
| Dynamic input - signal | 0...10 mA / IEPE / 4...20 mA |
| Dynamic input - resolution [bit] | 16 |
| Dynamic input - frequency range [Hz] | 0,1...12000 |
| Dynamic input - sampling rate [kSamples] | 100 |
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal |
| Electrical design | PNP |
| Number of digital outputs | 2; (configurable) |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Number of analog outputs | 1; (configurable) |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Frequency range [Hz] | 0.1...12000 |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Transmission rate | 10 MBaud; 100 MBaud |
| Protocol | PROFINET IO |
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | 0...60 |
| Protection | IP 20 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 92 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 415.2 |
|---|---|
| Housing | Plastic housing |
| Type of mounting | rail; (TH35/EN60715) |
| Dimensions [mm] | 114.2 x 50 x 105.3 |
| Material | PA |
Data memory
| Real-time clock | yes |
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Combicon: |
|---|
