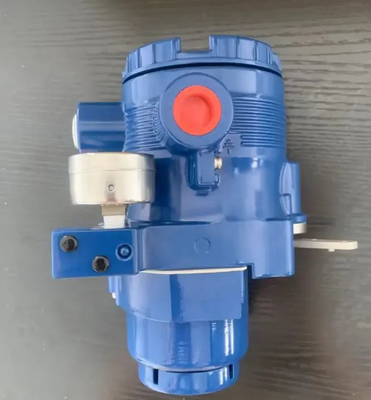

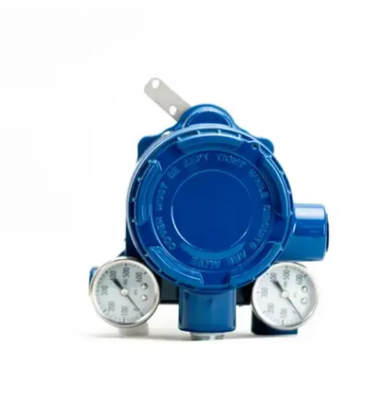

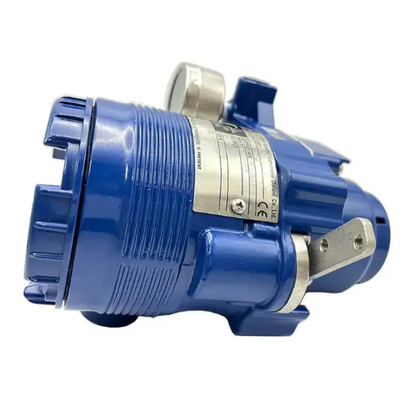

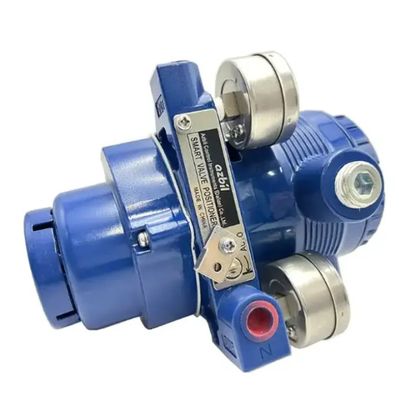

AVP307-RSD3A-XXXX-X Intelligent Valve Positioner 300 Series Models AVP300/AVP301/AVP302/307
| Place of Origin | Japan |
|---|---|
| 브랜드 이름 | Azbil |
| 인증 | - |
| Model Number | AVP307-RSD3A-XXXX-X |
| Minimum Order Quantity | 1 |
| 가격 | USD350/PC |
| Packaging Details | Original |
| Delivery Time | 2weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| media | Gas | Condition | New |
|---|---|---|---|
| Weight | 3 kgs | temperature of media | High Temperature, Low Temperature |
제품 설명
- Manufacturer : Yamatake
- Product No. : AVP300-RSD3A-XXXX-X
- Product type : AVP300 Smart Valve Positioner
- AVP300 : Analog signal (4 to 20mA DC) without travel transmission
- Structure : R = NEPSI Intrinsically safe and Flameproof Connection, 1/4NPT internal Air piping, 1/2NPT internal Electrical connection, 5/16-18 Mounting thread.
- Finish : S = Standard (Baked acrylic)
- Positioner action : D = Direct action - Air pressure increases with control signal increase
- Supply air pressure classification : 3 = 300<Ps<=400 kPa{3.0<Ps<=4.0 kgf/cm2} Air supply range, 600 kPa {6 kgf/cm2 } Pressure gauge scale, 400 kPa {4 kgf/cm2} Max regulator setting.
- Scale unit (Pressure gauge) : A = kPa
- Pressure regulator with filter : X = No selection
- Material of No selection : X = Bracket / Bolts
- Actuators (for bracket) : XX = No selection
- Option (Plural selection available) : X = No selection
- Material : Cast aluminum
- Color : Dark blue
- Finish : Baked acrylic
- Shipping weight : 4 Kg
