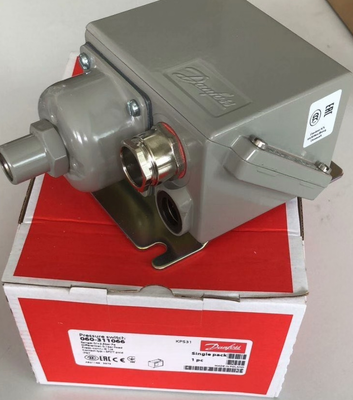

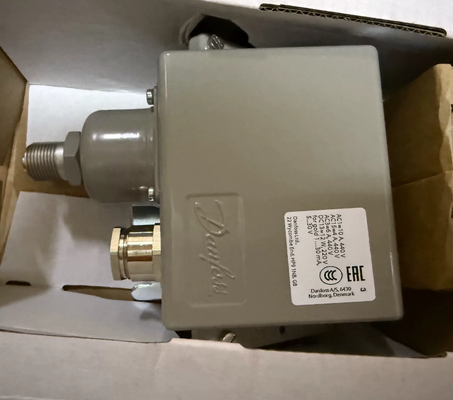

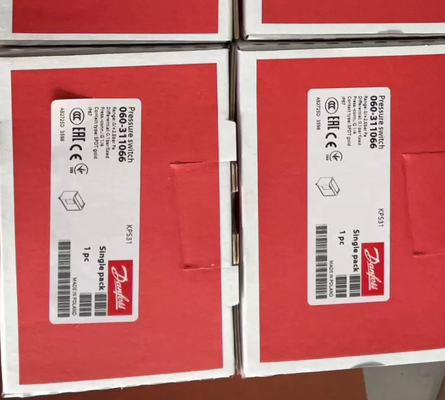

Original Danfoss KPS31 Pressure Switch with 6 bar Max Working Pressure Auto Reset Function and Female Pressure Connection
| 원래 장소 | 폴란드 |
|---|---|
| 브랜드 이름 | DANFOSS |
| 모델 번호 | KPS31 |
| 최소 주문 수량 | 2 |
| 가격 | USD＄130 |
| 포장 세부 사항 | 원래 포장 |
| 배달 시간 | 재고 있음 |
| 지불 조건 | L/C, D/A, D/P, T/T, 서부 동맹 |
| 공급 능력 | 10개 |
제품 상세 정보
| 강조하다 | Danfoss KPS31 pressure switch,original pressure switch in stock,float level switch with warranty |
||
|---|---|---|---|
제품 설명
Product details
| Max. Working Pressure [bar] | 6 bar |
| Max. Working Pressure [psig] | 87 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 2.5 bar |
| Regulation range [bar] Pe [min] | 0 bar |
| Regulation range [MPa] Pe [max] | 0.25 MPa |
| Regulation range [MPa] Pe [min] | 0 MPa |
| Regulation range [psig] Pe [max] | 36 psig |
| Regulation range [psig] Pe [min] | 0 psig |
| Reset function | Auto |
| SCIP dossier no. | d1127e97-408e-40d0-9aba-98480f7dad9c |
| SCIP dossier product name | KPS Pressure Switch |
| Serviceable | No |
| UL approval file name | E73170 |
| UL mark | Yes |
| Gross weight | 1.136 Kilogram |
| Net weight | 1.04 Kilogram |
| Volume | 2.518 Liter |
| EAN | 5702423146871 |
| Type | KPS31 |
| Product group | Switches and thermostats |
| Product Name Description |
Pressure switch
|
